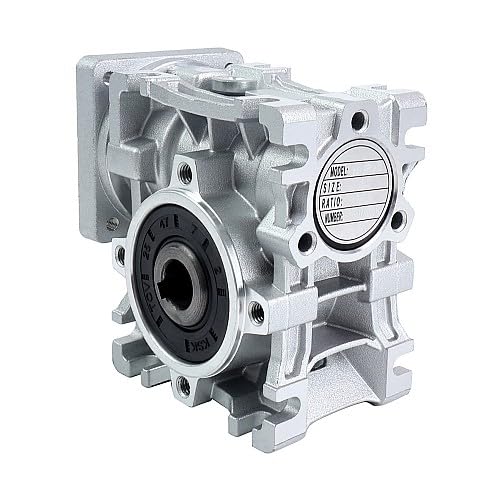

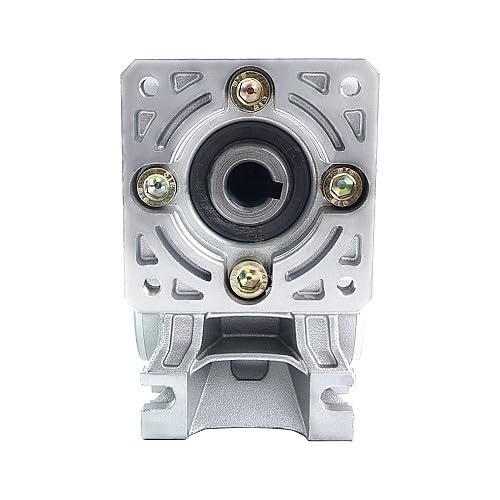

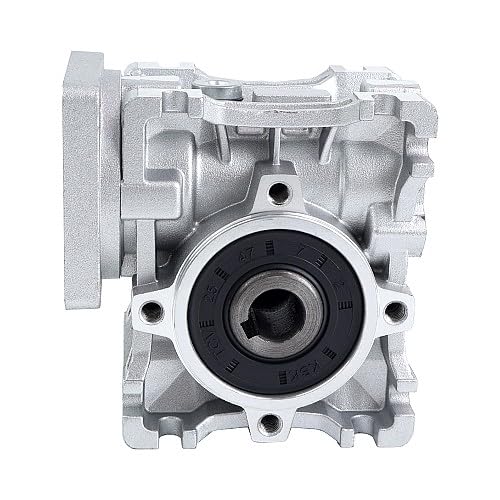

STEPPERONLINE 30:1 Worm Gearbox NMRVS30 Worm Gear Speed Reducer 11mm Input Shaft Diameter
Product details
| Management number | 211318791 | Release Date | 2026/04/04 | List Price | $20.00 | Model Number | 211318791 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This worm gearbox is designed for Nema 23 Stepper Motor or other 57mmx57mm size motor, the output shaft is offset by 90°from the drive shaft. Besides big cases, no gap structure of box means a maintenance-free that is hermetically sealed. It prevents the lubricant from easily losing and going bad, and exchanging. Using shaft sleeve adaptors RV30-K11-D8 or RV30-K11-D6.35 to convert 11mm input diameter to 8mm or 6.35mm Gearbox Specifications Manufacturer Part Number: NMRVS30-G30-D11 Gearbox Type: Worm Gearbox Gear Ratio: 30:1 Output Max.Permissible Torque: 20Nm(177.01lb-in) Output Max. Radial Load: 1.08N Output Type: Hollow Bore Output Bore Diameter: Φ14mm Input Shaft Type: Key way Input Shaft Diameter: Φ11mm Input Shaft Max. Length: 25mm Note Recommend Input Speed <=1500rpm. Due to high backlash, worm gearboxes are not suitable for positioning applications.
- High torque and high strength
- Worm wheel: Bronze Cu Sn12 Ni2 (UNI7013-10)
- Excellent mechanical strength and particularly lightweight
- Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity
| Model | NMRVS30-G30-D11 |
|---|---|
| Speed | 1500 RPM |
| Brand Name | STEPPERONLINE |
| Manufacturer | STEPPERONLINE |
