SIGNALPLUS Outdoor Yagi 915mhz lora Antenna 10 dbi Helium Antenna for Lora Miner Bobcat RAK Nebra Sensecap+Low Loss Cable RG58 16.5ft
Product details
| Management number | 215165125 | Release Date | 2026/04/12 | List Price | $27.60 | Model Number | 215165125 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification Details: Frequency Range :915MHz (824-960mhz ) Gain : 10dBi Polarization : Vertical Vertical Half-power Beam width : 54° Horizontal Half-power Beam width : 48° Front to Back Ratio: ≧14 VSWR : ≤1.5 Input Impedance : 50Ω Maximum input power : 100W Lightning protection: DC Ground Input connector type : N Female Dimensions : 0.7 meters Antenna weight : 0.8kg RG58 cable :30ft Radome material : Aluminium Alloy Elements Operating temperature : -40℃~60℃ Rated Wind Velocit : 60m/s Mounting way: Pole-holding Mounting hardware : ￠35mm~￠50mm
- Its frequency is 824-960mhz,include the 915MHz.
- If it is used outdoors, we recommend that you install it in an open place, if it is used indoors, we recommend placing this inside near a window.

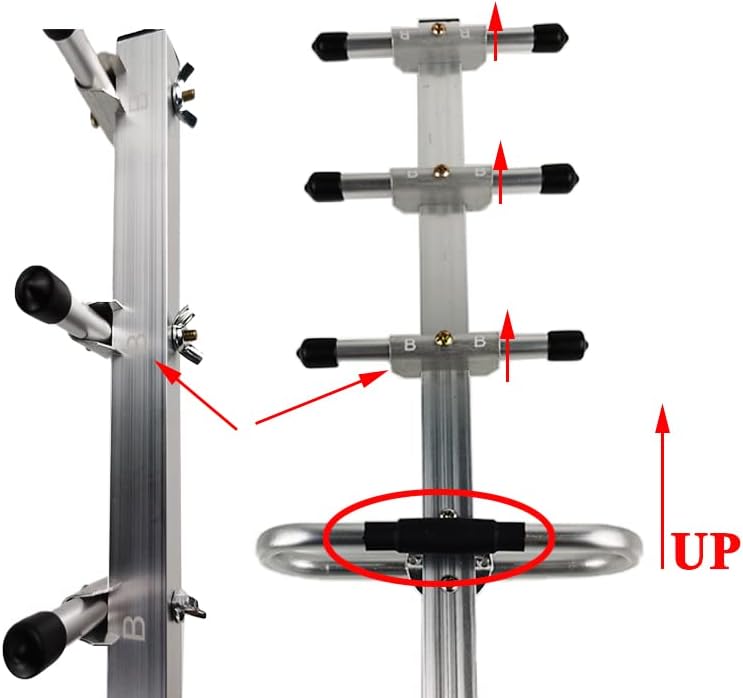

- Antenna length is 0.7 meters, 8 elements, weight is 0.8kg, aluminum alloy material, corrosion and oxidation resistance, increase service life
- Gain：10dbi，
- the connector of cable is RP-SMA ,the package is include an SMA adapter.
- Package List: 1 x lora helium antenna+1x16.5ft RG58 RP-SMA cable+1x SMA adapter
| Brand | SIGNALPLUS |
|---|---|
| Color | Silver |
| Impedance | 50 Ohms |
| Unit Count | 1.0 Count |
| Manufacturer | SIGNALPLUS |
| Maximum Range | 30 Feet |
| AntennaDescription | 915mhz lora antenna |
| Number of Channels | 1 |
| Warranty Description | SIGNALPLUS |
