PowMr 5000W Spilt-Phase Hybrid Solar Inverter, 48V to 110V/220VAC, 5KW Off-Grid w/Built-in 120A MPPT Charge Controller, Peak Power:15000W, Pure Sine Wave Inverter for 48V Lead-Acid and Lithium Battery
Product details
| Management number | 214765080 | Release Date | 2026/04/12 | List Price | $264.00 | Model Number | 214765080 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

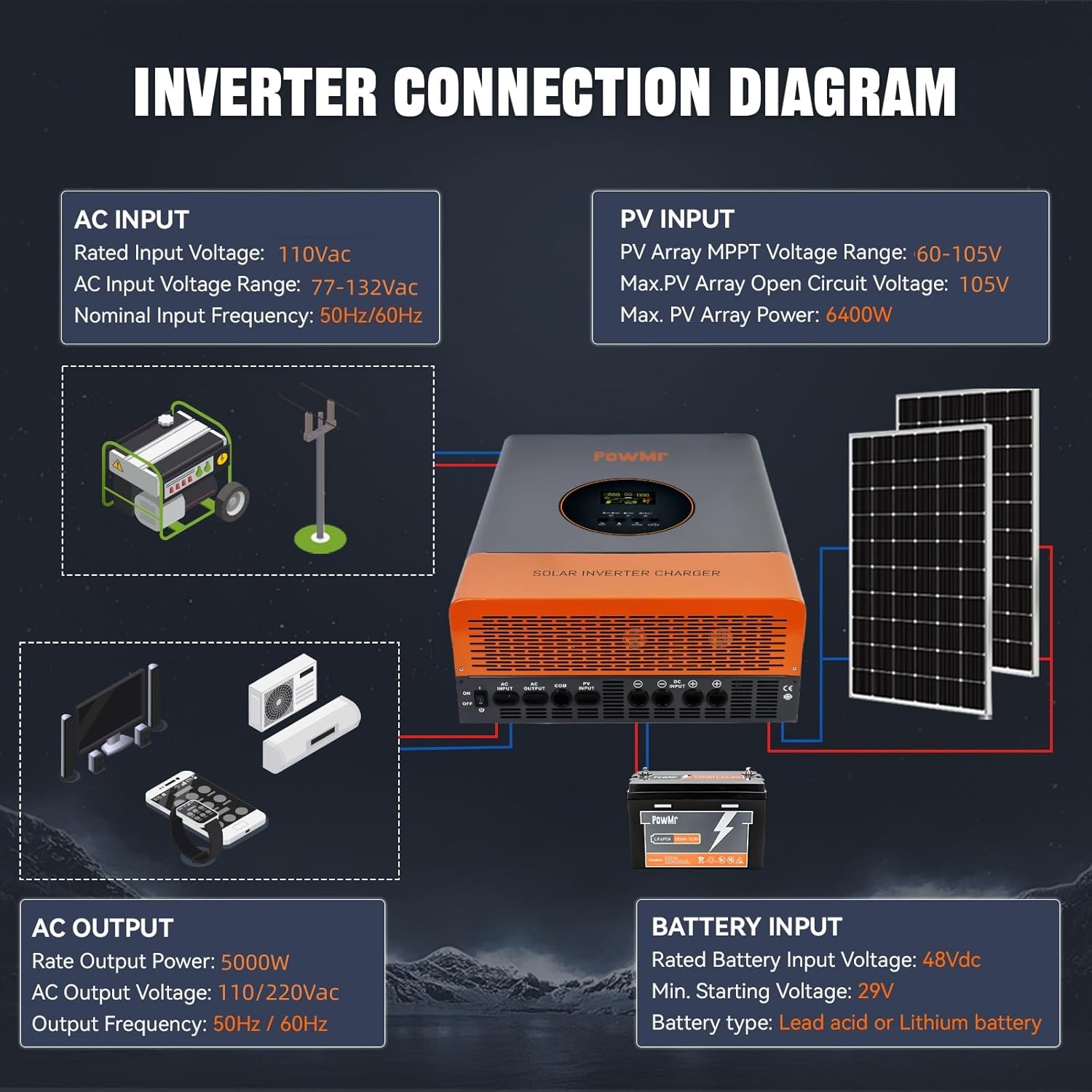

- 【Technical Specifications】DC Input：Nominal DC Input Voltage：48Vdc; MPPT Input Voltage Range：60-105VDC; Max PV Input Power：6400W; Max PV Charging Current: 120A; AC Input - Charger/Grid：Nominal Input Voltage：110Vac; AC Input Voltage Range：77~132Vac; Nominal Input Frequency：50Hz/60Hz (Auto Detection);Max AC Charging Current：50A; Transfer Time：<8ms; Input Protection：Circuit Breaker; Inverter Output：Rated Output Power：5000W; Peak Power：15000W; Nominal Output Voltage：110Vac(N-L1/N-L2) / 220Vac(L1-L2); Output Voltage Waveform：Pure Sine Wave; Output Frequency：50Hz/60Hz; Efficiency：>98% Output Protection：Circuit Breaker; supporting Utility/Generator/Solar Charge
- 【ATTENTION】 Please strictly adhere to the PV parameter limits (maximum open-circuit voltage, array power, charging current) specified in the manual. Do not connect photovoltaic modules beyond the specified limits—overvoltage or overcurrent will directly break down the internal power tubes. Please be sure to use the device in accordance with the configuration guide
- 【3 Charging & 3 Discharging Modes】Supports 3 charging modes: Solar-Only, Utility Priority, and Solar Priority; 3 discharge modes: Utility Priority, Solar Priority, and Inverter Priority. This hybrid inverter is compatible with various 48V battery types, including Flooded, LiCoMnNiO2, LiFePO4, AGM, Gel, and more
- 【Peak Power Up to 15000W】This product boasts exceptional load handling capabilities, achieved through advanced optimization and upgrades to traditional built-in transformers. It effortlessly supports high-power devices, including continuously running refrigerators, industrial machinery, and other demanding equipment. With stable and efficient performance, it ensures a reliable power supply to meet a wide range of energy needs
- 【Multiple Protections & Dual Voltage Output Support】Built-in fan for heat dissipation, LCD screen and LED indicators for system status, plus full protections (short circuit, voltage, overload, reverse). This hybrid solar inverter natively supports both 110V and 220V outputs, meeting the power requirements for different scenarios
| Brand | PowMr |
|---|---|
| Color | 5KW-48V to 110/220VAC(Split-phase) |
| Voltage | 48 Volts |
| Wattage | 10000 |
| Frequency | 60 Hz |
| Model Name | POW-RELAB-5KU-SPLIT |
| Unit Count | 1.0 Count |
| Item Weight | 60.41 Pounds |
| Display Type | LCD |
| Manufacturer | PowMr |
| Model Number | POW-RELAB-5KU-SPLIT |
| Output Power | 5000 Watts |
| Power Source | Solar Powered |
| BuiltIn Media | Inverter device x1; Instruction manual x1; Battery fuse x 1; Installation screws (1 set) |
| Input Voltage | 48 Volts (DC) |
| Output Voltage | 110 Volts (AC) |
| Mfr Part Number | POW-RELAB-5KU-SPLIT |
| Antenna Location | The 5KW hybrid solar inverter with power frequency is suitable for applications requiring stable utility-frequency AC power, supporting hybrid supply from solar, grid, and batteries, and delivering reliable electricity for homes, commercial/industrial sites, or remote areas. |
| Warranty Description | 12 months |
| Standby Power Shutoff | 98% |
| Peak Output Power Watts | 15000 |
| Inverter Capacity VoltAmp | 5000 |
| Item Dimensions L x W x H | 21.4"L x 7"W x 15.75"H |
| Electrical Output Waveform | Pure Sine Wave |
