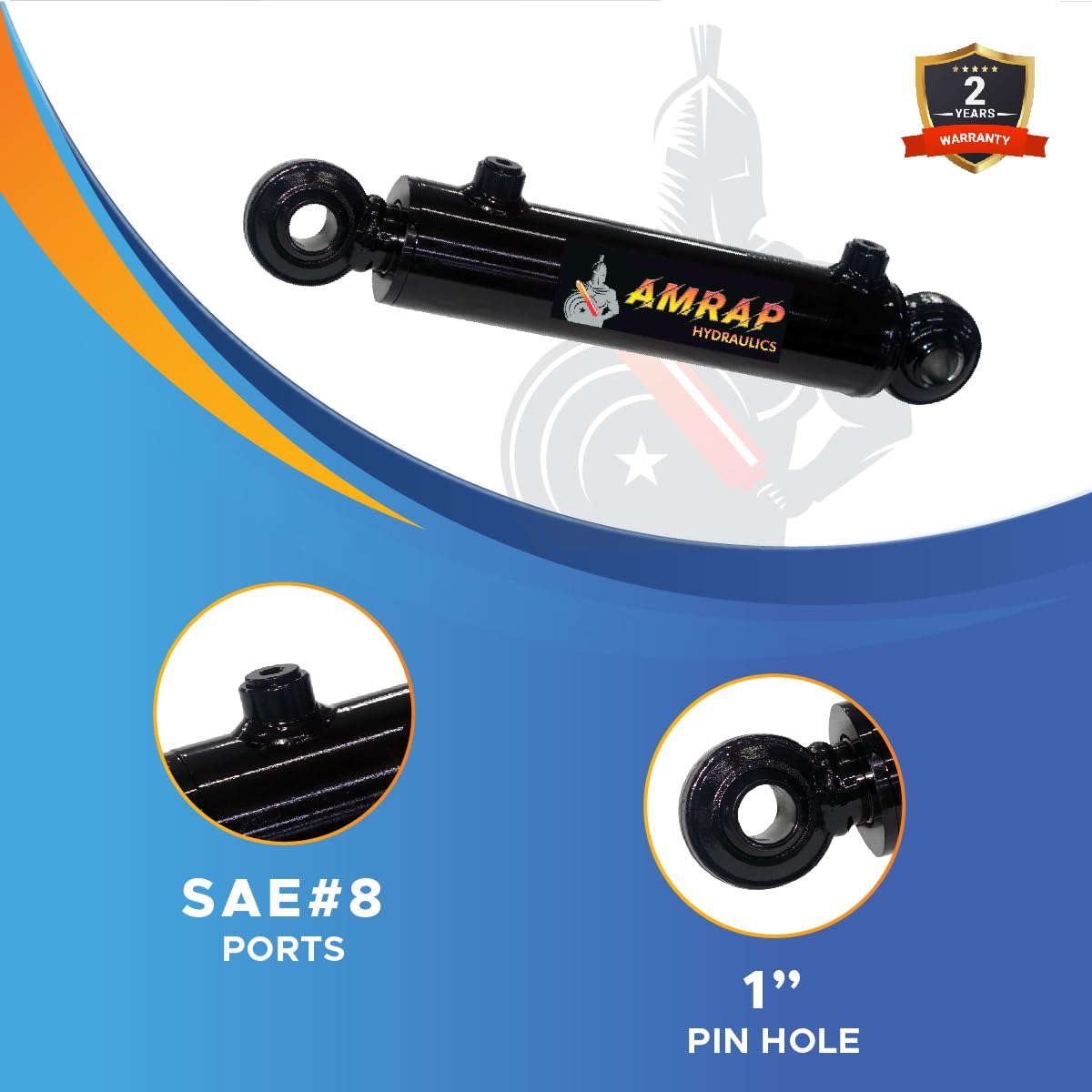

2.5x14 Hydraulic Cylinder - 2.5" Bore x 14" Stroke Hydraulic Cylinder | Swivel Eye Mount | 3000 PSI - (2.5x14) - SAE#8

The AMRAP Swivel Eye Hydraulic Cylinder is engineered for strength, durability, and flexibility in demanding hydraulic applications. Featuring a double-acting design, it provides equal pushing and pulling force for smooth and efficient operation. Built with a swivel eye mount on each end, this cylinder allows for angular movement and easier alignment, reducing stress on the mounting points and extending service life. The welded construction ensures maximum durability, while high-quality seals prevent leaks and deliver reliable performance under heavy loads. Rated for up to 3500 PSI working pressure, AMRAP swivel eye cylinders are designed for use in agriculture, construction, material handling, and industrial equipment where both power and flexibility are required.

• Bore 2.5" (OD 2.88"), Stroke 14-inch, Rod 1 1/2", Retracted 21 1/2", Extended: 35 1/2" Pin holes 1".
• Rated Pressure 3000 PSI, Column Load 14,720 LBs, Ports SAE #8(O-ring boss), Double Acting Hydraulic Cylinder
• HEAVY-DUTY PERFORMANCE: Built to handle tough jobs, this 1.5" bore x 8" stroke hydraulic cylinder is made from high-grade steel with a durable welded construction rated up to 2500 PSI working pressure.
• SWIVEL EYE MOUNTING: Features a swivel eye on both ends, providing flexibility and smooth motion in a variety of industrial, agricultural, and mobile applications.
• LEAK-FREE DESIGN: Precision-welded end caps, high-quality seals, and a polished chrome-plated rod ensure long-lasting performance and leak-free operation.
• CORROSION RESISTANT: Includes a rust-resistant black powder coat finish and zinc-plated fittings for added protection in harsh environments.
